IDI688X-E Cabinet Series
- Mainly used for testing appliances, electronic products, and electrical equipment, and so on.
- Basic safety measurement accuracy reaches 1%, basic power module measurement accuracy reaches 0.2%, leading in precision.
- Options include single-station serial testing, single-station parallel testing, and dual-station parallel testing, etc., reducing testing time, increasing factory capacity.
Equipment Introduction
1、Basic knowledge of electrical safety performance
Insulation Resistance Test: Insulation resistance is an important electrical parameter that reflects the performance of insulating materials. This test can understand the insulation performance of the tested object, as well as the moisture or contamination of the insulation.
AC/DC withstand voltage test: By applying transient or continuous high voltage several times the rated voltage between the energized parts and the shell of the tested product, it verifies whether there is breakdown in the energized parts of the tested product; during the test, the insulation parts of the tested product are subjected to abnormal stress, which can quickly identify insulation failure, electrical clearance issues, and other defects.
Ground Resistance Test: Ground continuity resistance refers to the connection resistance between the easily accessible metal parts of the tested product and the grounding terminal or grounding contact point. This test aims to verify whether the protective grounding measures are reliable .
Leakage current test: The current unrelated to operation generated by the power supply of the tested product through insulation or distributed parameter impedance is called leakage current.
2.、The IDI688X-E cabinet-type comprehensive testing series is a new generation of integrated, intelligent information products launched by Yidi Electronics in recent years. It adopts a high-integration design, with safety test accuracy improved to 1%, and further enhances testing efficiency, saving testing time and effectively increasing productivity. The cabinet-type comprehensive testing series offers various configurations to choose from, including non-parallel single-station, parallel single-station, and parallel double-station output modes. It can be selected with or without a computer version. Power supply options include built-in inverter power supply or isolation transformer, with selectable capacity for inverter power supply or isolation transformer. It also offers options for single-phase or three-phase testing versions.
3、Rich features: one-click fully automatic inspection, multiple startup methods, barcode entry and data storage, data transmission, multiple judgment standards for various test items, etc.
4、This series of safety performance comprehensive analyzers is suitable for multiple scenarios such as factory manufacturing and quality inspection certification. For manufacturing factories, it can be used in various testing stages during research and development and production.
5.This series of analyzers can be widely used for testing in various industries.
Home appliances, commercial appliances, 3C consumer electronics, medical devices, lighting fixtures, charging piles, electric vehicles, rail transit, power electronic components, power equipment, energy industry, motor coil products, power tools, third-party laboratories and other certification and quality inspection agencies……
6.Equipment selection:

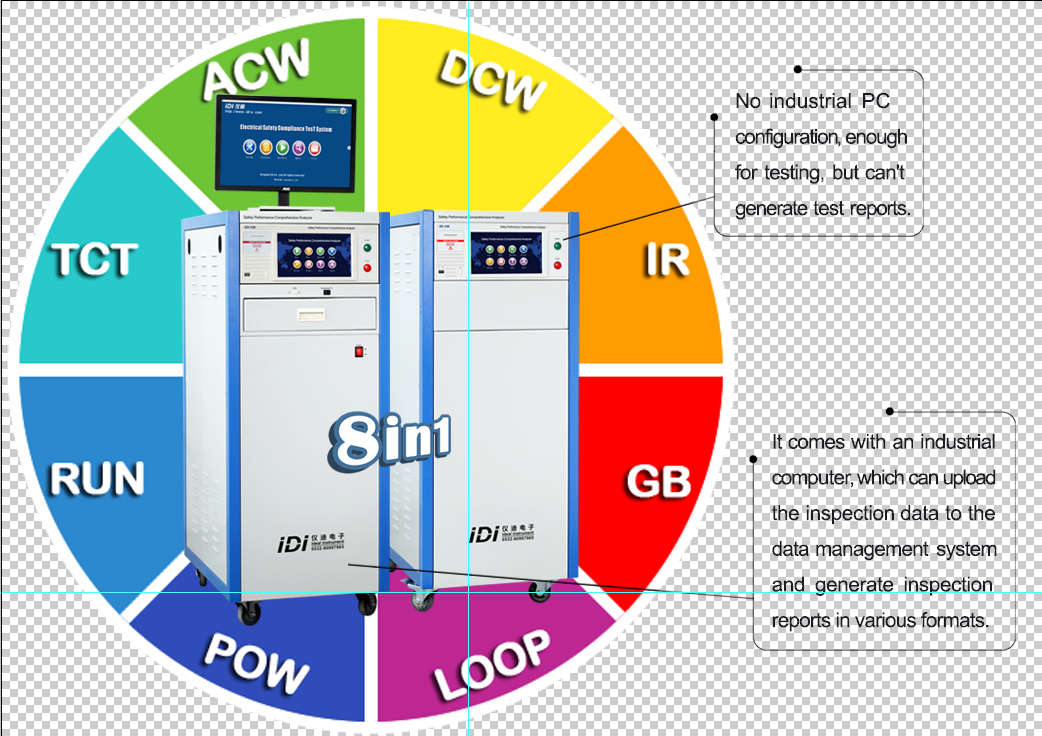

Equipment selection (a single device can integrate 4-8 functions) | |
IDI688XL-E |
Single workstation non-parallel series, built-in isolation transformer, no upper computer, single-phase |
IDI688X-E |
Single-station parallel series, built-in isolation transformer, no host computer, single-phase |
IDI688XPL-E |
Single-station non-parallel series, built-in inverter power supply, no upper computer, single-phase |
IDI688XP-E |
Single-station parallel series, built-in variable frequency power supply, no upper computer, single-phase |
IDI688XPD-E |
Parallel dual-station series, built-in variable frequency power supply, no upper computer, single-phase |
IDI688XCL-E |
Single workstation non-parallel series, built-in isolation transformer, including upper computer, single-phase |
IDI688XC-E |
Single-station parallel series, built-in isolation transformer, includes upper computer, single-phase |
IDI688XCPL-E |
Single workstation non-parallel series, built-in inverter power supply, including upper computer, single-phase |
IDI688XCP-E |
Single-station parallel series, built-in variable frequency power supply, including upper computer, single-phase |
IDI688XTL-E |
Single work station non-parallel series, built-in isolation transformer, no upper computer, compatible with single-phase and three-phase |
IDI688XT-E |
Single-station parallel series, built-in isolation transformer, no upper computer, compatible with single-phase and three-phase |
IDI688XCTL-E |
Single workstation non-parallel series, built-in isolation transformer, includes upper computer, compatible with single and three-phase |
Technical parameters | |
Insulation resistance |
3000V DC/10GΩ (optional 50GΩ) |
Insulation withstand voltage |
5000V AC/40mA (optional 100mA) |
DC withstand voltage |
6000V DC/10mA (optional 20mA) |
Grounding resistance |
32A AC/600mΩ |
Leakage current |
300V AC/20mA, 6 sets of simulated human body impedance network, dynamic & static leakage |
Power Test |
300V AC/22A |
Low voltage startup |
300V AC/22A |
Short circuit |
1.0~999.9Ω |
Load power supply capacity |
Optional 3KVA, 6KVA, 9KVA, 10KVA, 20KVA inverter power supply or isolation transformer |
