MN427XA-E Desktop Series
- Mainly used for testing appliances, electronic products, and electrical equipment, and so on.
- Basic safety measurement accuracy reaches 1.5%, basic power module measurement accuracy reaches 0.5%, leading in precision.
- Test Project：ACW、IR、GB、TCT、RUN、POW...
Equipment Introduction

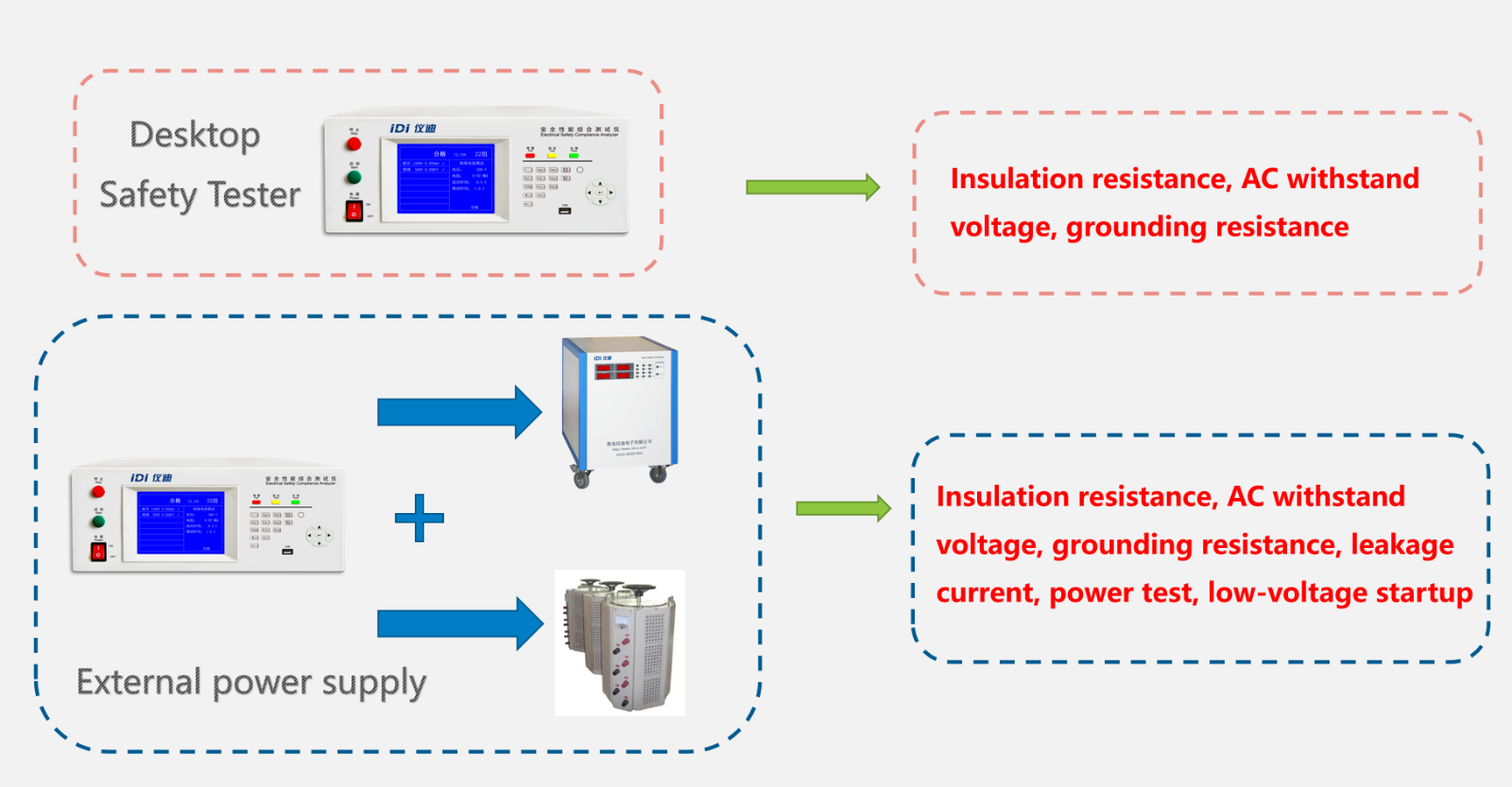

1、MN427XA-E Desktop Comprehensive Testing Series is a comprehensive electrical safety testing product that has been a best-seller for Yidi Electronics for many years. It focuses on high-speed batch testing scenarios on production lines, is easy to learn and use, with a safety test accuracy of 1.5%, meeting the testing needs of most production lines or laboratories. After years of application, the stability and reliability of this series are at the forefront. It can also be connected to an inverter power supply or isolation transformer to meet various power supply testing needs for electrical products. This tester has 50 memory groups, each with 8 test steps, and can perform single-step or continuous testing, suitable for testing products at different times and voltage levels to observe their test data.
2、Using high-quality testing instruments allows for better control of product quality. This series of safety performance comprehensive testers meets the testing application scenarios of factory production. For manufacturing plants, they can be used in multiple testing stages during research and development and production. This series of products can be highly integrated into various industry ecosystems, forming support for product development, control over product manufacturing, and traceability of product quality.
3、This series of analyzers can be widely used for testing in various industries.
Home appliances, commercial appliances, 3C consumer electronics, medical devices, lighting fixtures, AC charging piles, rail transit, power electronic components, power equipment, energy industry, motor coil products, power tools, third-party laboratories and other certification and quality inspection agencies……
4、Equipment selection:
Equipment selection | |
MN4274A-E |
Four-in-one: dielectric withstand voltage, insulation resistance, grounding resistance, leakage current |
MN4275A-E |
Five-in-one: AC withstand voltage, insulation resistance, grounding resistance, leakage current, power test |
MN4276A-E |
Six-in-one: dielectric withstand voltage, insulation resistance, grounding resistance, leakage current, power test, low-voltage startup |
| MN4276A-E | Six-in-one: dielectric withstand voltage, insulation resistance, grounding resistance, leakage current, power test, low-voltage startup |
Configuration | |
Size |
450W*565D*200H, units (mm) |
Configuration |
320×240 dot matrix LCD blue screen, interface: PLC & alarm light & USB & power interface & communication port & inspection tooling interface |
Standard accessory |
Alarm light (1.5 meters), remote control foot switch (2.5 meters), power cord (2 meters), load wire, grounding wire (2.5 meters), test box, grounding clamp (3 meters), communication wire (3 meters) |
Working conditions |
Power supply: Configure according to the power grid of the country where this product is used. |
Ambient temperature: 0-40°C | |
Environmental humidity: 20-80% RH | |
Technical parameters | |
Insulation resistance |
1000V DC/3000MΩ |
Insulation withstand voltage |
5000V AC/40mA |
Grounding resistance |
32A AC/600mΩ |
Leakage current |
300V AC/20mA, static test & dynamic test |
Power Test |
300V AC/25A |
Low voltage startup |
300V AC/25A |
