Grounding Resistance Tester
- Ground resistance testing for various electrical products，Output adjustable constant AC current.
- Multiple current output options available: 32A、64A、100A；AC current，can meet the grounding resistance measurement needs of most electrical products.
- LCD display version, 1% measurement accuracy; LED display version, 2% measurement accuracy.
Equipment Introduction
1、IDI611XA/B-E Grounding Resistance Tester, specifically used for testing the grounding protection resistance of electrical products. This series of testers has multiple models available, each with different ranges and configurations. Users can choose based on the size of the protective grounding current of the tested product.
Test accuracy: Line compensation can be performed to eliminate testing deviations caused by line interference or environmental factors, and the test value is the true value of the tested product.
Protect diversity: The voltage output does not exceed 10V, effectively protecting the safety of testers; dual protection with hardware and software.
This series of testers has LCD screen models and digital tube models, with two options: high-end and mid-range. This series of testers is easy to learn and easy to use, with 10 memory groups, each containing 8 test steps. It can perform single-step testing or continuous testing, and can test the tested product with different durations and different output currents to observe its test data.
2、Industry applications:
Home appliances, commercial appliances, 3C consumer electronics, medical devices, charging piles, electric vehicles, rail transit, power electronic devices, power equipment, energy industry, third-party laboratories, and other certification and quality inspection agencies.
3、 Equipment selection:
Equipment selection | |
IDI6113A-E |
Digital tube display, 2% current output accuracy, 2% resistance measurement accuracy, maximum output 32A current |
IDI6113B-E |
LCD screen display, 1% current output accuracy, 1% resistance measurement accuracy, maximum output of 32A current |
IDI6116B-E |
LCD screen display, 1% current output accuracy, 1% resistance measurement accuracy, maximum output 64A current |
IDI6119B-E |
LCD screen display, 1% current output accuracy, 1% resistance measurement accuracy, maximum output 100A current |
Configuration | |
Size |
300W*320D*112H, unit: mm; for reference only, differences in sizes of different styles |
Configuration |
LCD screen or digital tube display, interface: PLC & communication port & USB (LCD type) & alarm light port (optional) |
Standard accessory |
Power cord (2 meters), remote control switch signal line (1.1 meters), grounding test clips (one red, one green), communication line (3 meters) |
Working conditions |
Power supply: Configure according to the power grid of the country where this product is used. |
Ambient temperature: 0-40°C | |
Environmental humidity: 20-80% RH | |
Technical parameters | ||||
IDI6113A-E |
IDI6113B-E |
IDI6116B-E |
IDI6119B-E |
|
Output current range |
32A |
32A |
64A |
100A |
Output frequency |
50/60Hz |
|||
Ground resistance measurement range |
≤10A, 600mΩ 10A ≤ Set current ≤ maximum output current capacity, 0.1 — RmΩ, R = 8000/ Set current, R < 600 |
|||
Output current accuracy |
±(2% setting value + 2 characters) |
±(1% setting value + 2 characters) |
||
Grounding resistance measurement accuracy |
±(2% reading value + 2mΩ) |
±(1% reading value + 2mΩ) |
||
4、Basic knowledge of electrical safety performance:

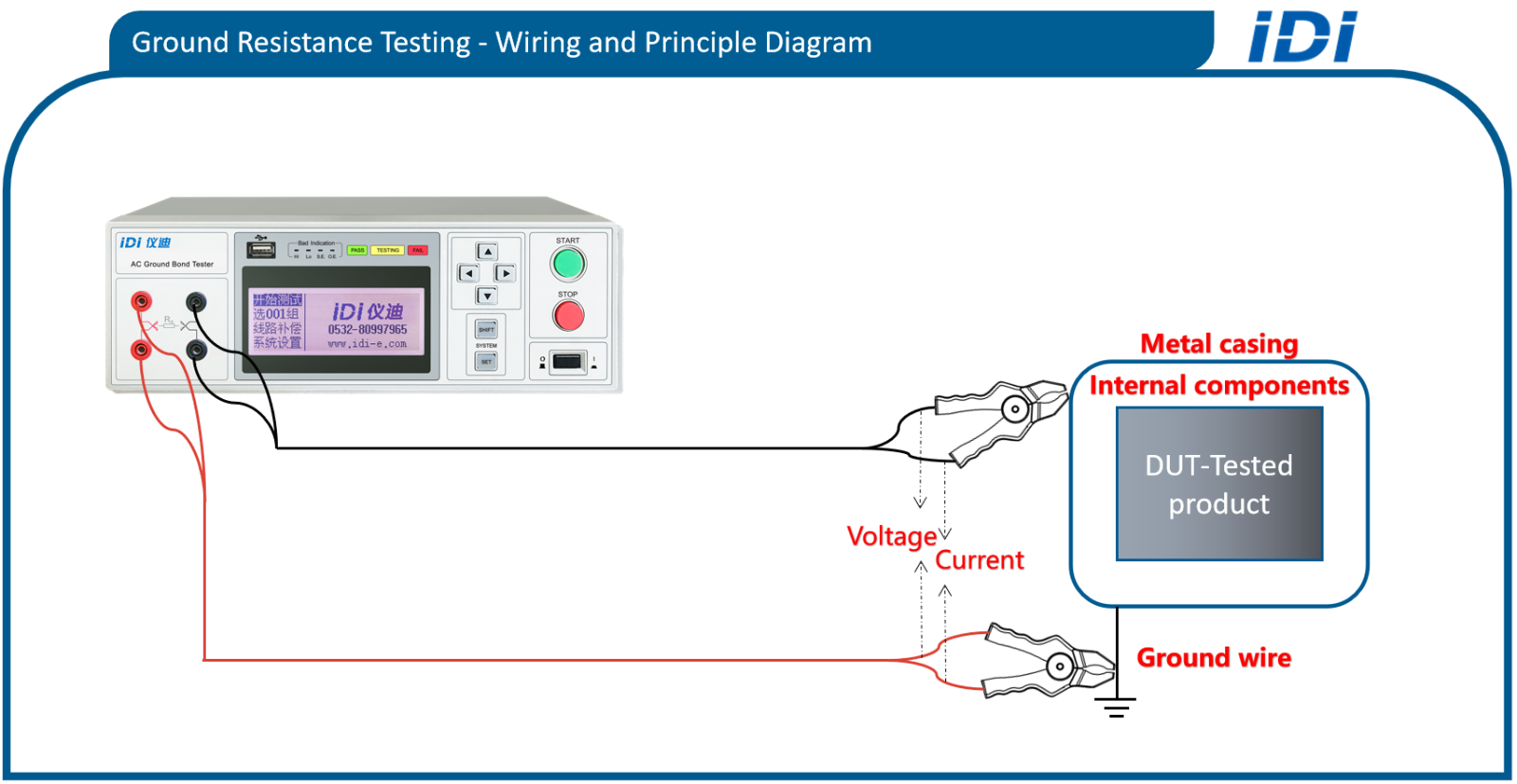

Ground Resistance Test: Ground continuity resistance refers to the connection resistance between the easily accessible metal parts of the tested product and the grounding terminal or grounding contact point. This test aims to verify whether the protective grounding measures are reliable and is a quantitative indicator of the grounding continuity of the tested product. By outputting a constant AC large current, it detects whether there are issues such as loose screws, too small grounding wire diameter, or open grounding wire in the tested product.
