Insulation Voltage Resistance Tester
- AC withstand voltage test, output voltage can be adjusted.
- Single machine can select multiple models of 10mA, 20mA, 40mA, 100mA, 200mA to meet the withstand voltage and leakage current tests of various electrical products.
- There are two types of measurement accuracy: 1% or 2%, meeting the needs of most testing requirements.
Equipment Introduction
1、IDI610XA/B-E AC withstand voltage tester. Specifically used for AC withstand voltage testing of electrical products. This series of testers has multiple models available for users to choose from based on actual testing needs; the output capacity, leakage current test range, and testing accuracy of this series of testers are all at the forefront of the industry.
Test accuracy: Line compensation can be performed to eliminate testing deviations caused by line interference or environmental factors, and the test value is the true value of the tested product; by setting upper and lower limit alarms, the risk of missed detection of the product can be eliminated.
Full protection function: Prevent high-voltage electric shock lines, detect circuits at any time, eliminate electric shock injuries, ensure personnel safety; standard equipped with arc detection function.
This series of testers has an LCD screen version (1% accuracy) and a digital tube version (2% accuracy), with high-end and mid-range options available. Users can choose according to the actual leakage current of the tested product and relevant regulatory requirements. This series of testers is easy to learn and use, with 10 memory groups, each containing 8 test steps. It can perform single-step testing or continuous testing, suitable for testing the tested product at different times and different voltage output levels to observe its test data.
2、Industry applications:
Home appliances, commercial appliances, 3C consumer electronics, medical devices, lighting fixtures, charging piles, electric vehicles, rail transit, power electronic components, power equipment, energy industry, motor coil products, power tools, third-party laboratories and other certification and quality inspection agencies.
3、Equipment selection:
Equipment selection | |
IDI6102B-E |
LCD screen display, 1% voltage output accuracy, 1% current measurement accuracy, maximum leakage current measurement: 20mA |
IDI6104B-E |
LCD screen display, 1% voltage output accuracy, 1% current measurement accuracy, maximum leakage current measurement: 40mA |
IDI6106B-E |
LCD screen display, 1% voltage output accuracy, 1% current measurement accuracy, maximum leakage current measurement: 100mA |
IDI6107B-E |
LCD screen display, 1% voltage output accuracy, 1% current measurement accuracy, maximum leakage current measurement: 200mA |
IDI6101A-E |
Digital tube display, 2% voltage output accuracy, 2% current measurement accuracy, maximum leakage current measurement: 10mA |
IDI6102A-E |
Digital tube display, 2% voltage output accuracy, 2% current measurement accuracy, maximum leakage current measurement: 20mA |
IDI6104A-E |
Digital tube display, 2% voltage output accuracy, 2% current measurement accuracy, maximum leakage current measurement: 40mA |
IDI6106A-E |
Digital tube display, 2% voltage output accuracy, 2% current measurement accuracy, maximum leakage current measurement: 100mA |
Configuration | |
Size |
300W*370D*112H, unit: mm |
Configuration |
LCD screen or digital tube display, interface: PLC & RS232 communication port & USB (LCD version) & alarm light port (optional) & RS485 communication port (optional) |
Standard accessory |
Power cord (2 meters), remote control switch wire (1.1 meters), high-voltage rod (1.5 meters), return line (1.5 meters), communication line (3 meters) |
Working conditions |
Power supply: Configure according to the power grid of the country where this product is used. |
Ambient temperature: 0-40°C | |
Environmental humidity: 20-80% RH | |
Technical parameters | |
Voltage output range |
AC: 100~5000V |
Output frequency |
50Hz or 60Hz |
Arc detection |
Levels 1-9, 9 being the most sensitive, 0 is off |
4、Basic knowledge of electrical safety performance:

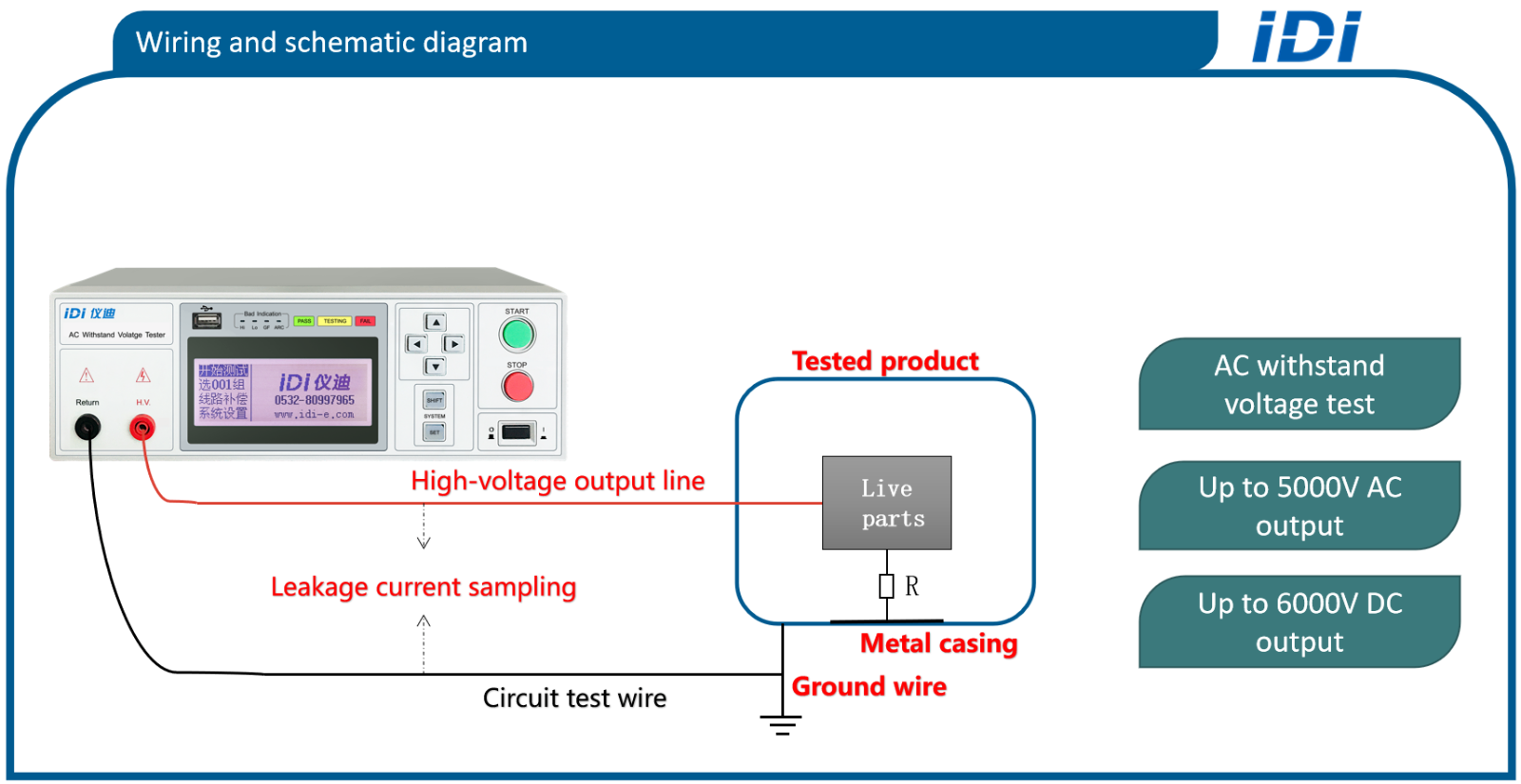

Dielectric withstand voltage test: also known as electrical strength test, it verifies whether the energized parts of the tested product have breakdown phenomena by applying transient or continuous high voltage several times higher than its rated voltage between the energized parts and the shell of the tested product; during the test, the insulation parts of the tested product endure abnormal stress, allowing for quick detection of insulation failure, electrical clearance issues, and other defects.
