New Energy Vehicle Special Safety Analyzer

1、Basic Knowledge of New Energy Vehicle Testing

Potential Equalization Test: Potential equalization is achieved by physically connecting the exposed conductive parts of electrical equipment to a reference point or equipotential point on the vehicle body (usually the chassis) to minimize the potential difference between them. This connection ensures that, in the electrical system, especially in high-voltage systems, the conductive parts maintain the same potential, thereby reducing the risk of electric shock and other safety hazards.

Insulation Resistance Test: The electrification level of new energy vehicles is higher than that of traditional cars. Under harsh operating conditions (car vibrations, external environmental humidity and temperature), or in the event of a collision or rollover, the insulation performance between the high-voltage circuit and the vehicle chassis may be reduced, leading to vehicle fires and endangering the safety of drivers and passengers. The higher working voltage of new energy vehicles places higher demands on the insulation performance between the high-voltage electrical system and the vehicle chassis.

Whole vehicle insulation test: The high-voltage components of electric vehicles are a parallel structure, and the insulation resistance of the entire system is the parallel value of all high-voltage component insulation resistances. According to GB-T 18384-2015 Electric Vehicle Safety Requirements, the minimum insulation resistance requirement: DC 100Ω/V, AC 500Ω/V.

Insulation Monitoring Verification: In high-voltage electrical systems of electric vehicles, if insulation failure occurs, it will pose serious safety hazards. To ensure that the vehicle can promptly send an alarm signal to the driver in case of insulation failure, the vehicle should have an insulation resistance monitoring function.

2、IDI-D680X-E/IDI-M680X-E Series New Energy Vehicle Special Safety Standard Analyzer is a high-end product series launched by Yidi Company, specifically for safety standard testing of new energy vehicles. It integrates four functions: potential balancing, insulation resistance, whole vehicle insulation, and insulation verification. It is highly precise and efficient, making it an important testing device for new energy vehicle manufacturers and quality inspection departments. This tester is a comprehensive testing instrument independently developed and produced by Yidi Electronics Company, with advanced technology, automation level, and performance in the industry. The equipment is stable and reliable, with safe and convenient measurement methods, high integration friendliness, and can significantly improve work efficiency; it adopts the most advanced design concepts and complies with the latest relevant national standards.

Designed with a standard 4U height, it can meet independent application scenarios. The device’s detection items adopt a plug-in card design, allowing customers to flexibly select the corresponding detection items based on testing needs.

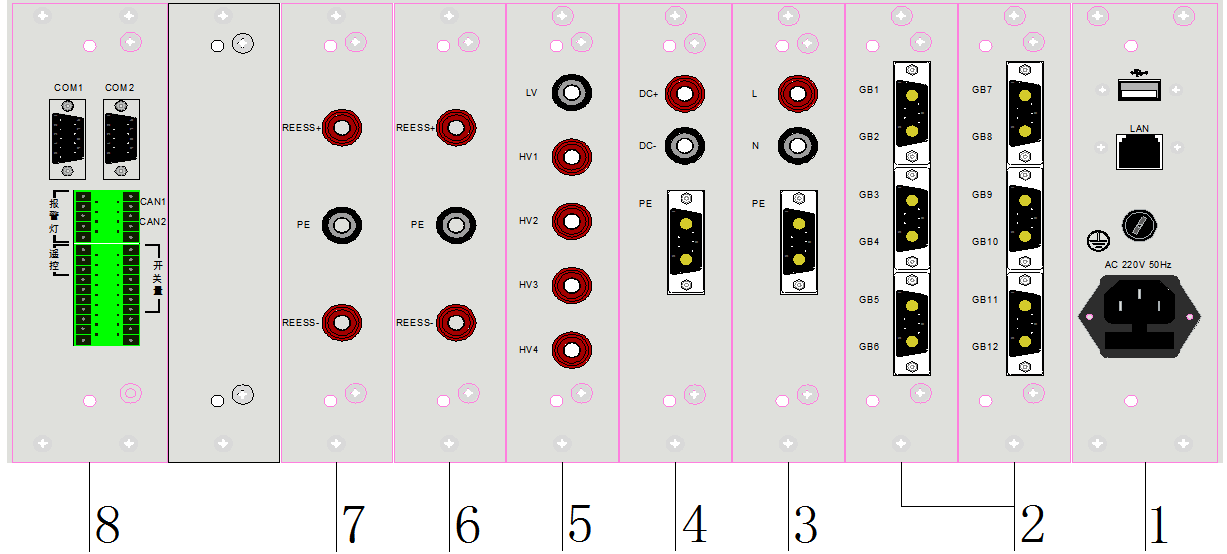

3、Device back panel display

① Power socket, grounding post, LAN port, USB port module

Power outlet: Provides power input for the analyzer (AC 220V±10%, 50HZ±5%), contains a 5A fuse.

Grounding pillar: External grounding wire, ensure the analyzer is safely grounded.

LAN port: Reserved.

USB port: Used for importing or exporting data. When copying files with a USB flash drive, files with Chinese directory names cannot be copied to the instrument.

②Potential Equilibrium Output Module

③Communication Charging Gun Testing Module

④DC Charging Gun Test Module

⑤Insulation Resistance Testing Module

⑥ Complete vehicle insulation testing module (fast charging port testing method)

⑦ Complete vehicle insulation testing module (component testing method)

⑧ Remote control switch quantity module
